H408d28f865944de9a205bf66746fc03b1.jpg_480x480

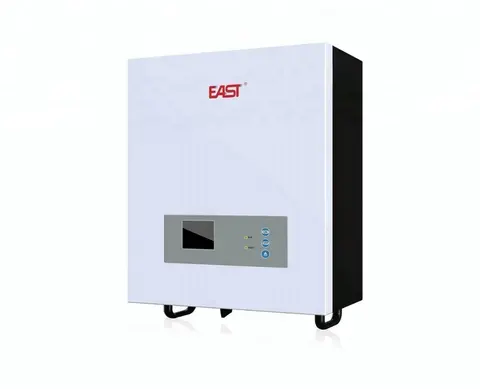

Off-Grid Solar Inverter 500W

Characteristic

  •  High reliability: adopt a high-speed DSP control system, combine advanced SPWM technology and high-speed power MOS
  • Operating mode selectable: energy storage priority or power supply priority
  •  No PID attenuation damage for solar panels to ensure their service life
  • Flexible battery management system: auto switch three-stage charging mode shortens recharge time: wide charging current is selectable according to configured battery; flexible DOD (Depth of discharge) is settable to meet more applications
  • AC input with effective online synchronous stabilizing technology
  •  Board MPPT input voltage range
  • No-load auto shutdown function (optional)
  • Settable frequency (50 Hz / 60 Hz)
  • Mobile APP monitoring
  • Auto Power-On/Off function; real-time monitoring, test and intelligent startup / shutdown by RS232 or USB interface communicating with PC; remote monitoring by optional SNMP networks
5kw-off-grid-inverter-5-700x700

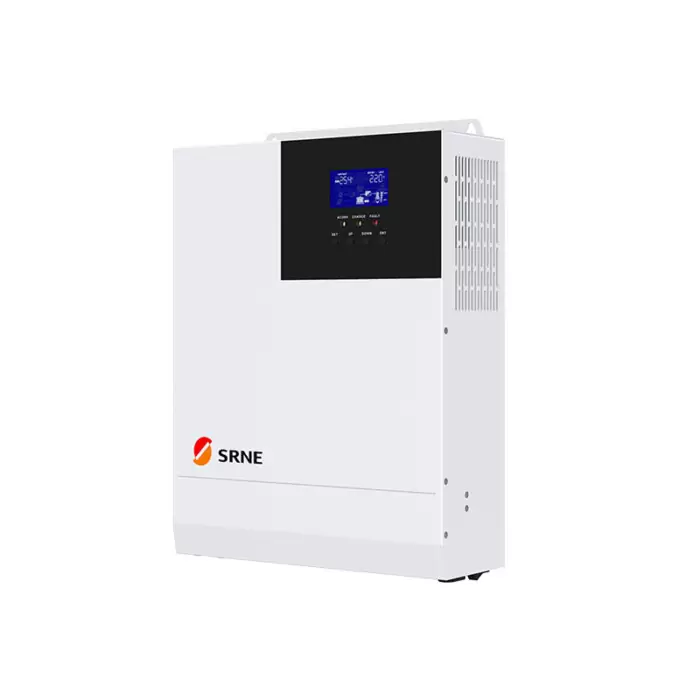

3KW Hybrid Solar Inverter

Characteristic

  •  It adopts full-digital double closed loop control, combined with advanced SPWM technology to output pure sine wave.
  • Two output modes: mains electricity bypass and inverter output; uninterrupted power supply.
  • Four charging modes: PV Only, Mains Electricity Priority, PV Priority and PV&Mains Electricity hybrid charging.
  •  Advanced MPPT technology with 99.9% efficiency.
  •  User-defined charging parameters setting(voltage, current and mode), and suitable for various types of energy storage batteries.
  • Rocker switch for AC output control.
  •  Power saving mode, reduce no-load loss.
  • Intelligent variable-speed fan to efficiently dissipate heat and extend system lifespan.
  • Lithium battery activation function, allow lead-acid battery and lithium battery access.



5kw-off-grid-inverter-5-700x700

5KW Hybrid Solar Inverter

Characteristic

  •  It adopts full-digital double closed loop control, combined with advanced SPWM technology to output pure sine wave.
  • Two output modes: mains electricity bypass and inverter output; uninterrupted power supply.
  • Four charging modes: PV Only, Mains Electricity Priority, PV Priority and PV&Mains Electricity hybrid charging.
  •  Advanced MPPT technology with 99.9% efficiency.
  •  User-defined charging parameters setting(voltage, current and mode), and suitable for various types of energy storage batteries.
  • Rocker switch for AC output control.
  •  Power saving mode, reduce no-load loss.
  • Intelligent variable-speed fan to efficiently dissipate heat and extend system lifespan.
  • Lithium battery activation function, allow lead-acid battery and lithium battery access.
